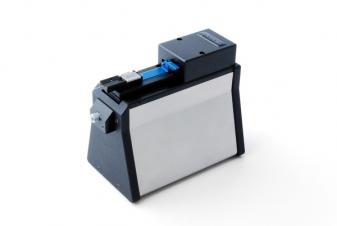

CleaveMeter3D NYFORS

CleaveMeter3D NYFORS

Interféromètre pour fibre optique clivée

Points forts

Full resolution surface topography reconstruction

2D view of surface topography and pointwise slope

3D view of surface topography with camera and lighting control

Extremely accurate, operator independent measurements of cleave angle and surface flatness over arbitrary diameters

Optional pass/fail indication of cleave angle for fast operation in production environments

Description du produit

The CLEAVEMETER 3D™ is a non-contact interferometer designed for inspecting the end-faces of cleaved or polished optical fibers with cladding diameters of 125 µm to 1200 µm. It gives immediate and precise information on important end-face properties such as flatness, perpendicularity, hackles and dust. Based on the NYFORS CLEAVEMETER 3D™ design, in addition to producing sharp fringe patterns it also generates three-dimensional images of the cleaved fiber end.

Documents (1)

Brochure CLEAVEMETER 3D NYFORS.pdf

240 KB

Liens (1)

Interféromètres NYFORS
